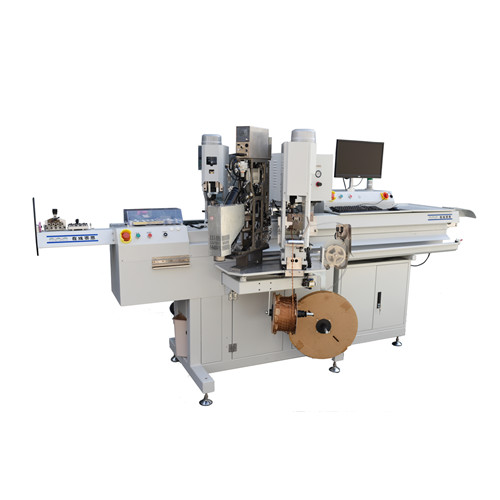

The 3A-2 fully automatic terminal machine is a heavy-duty machine with a maximum wire processing capacity of 5mm2. It can perform double end skinning, double end crimping, and double end waterproof bolts. It can carry up to 4 work stations and can be equipped with dual incoming lines, dual mold workstations, complete machine protective covers, coding machines, tensile testing machines, and height measuring instruments.

Typical indicators:

Carrying :         up to 4 work stations

Processing wire cross-section     0.3mm2-5mm2 AWG22-AWG10

Wire length                                 65mm -9999m

Peeling length                            1mm -18mm

Pressure force                             2T/4T

Line length accuracy                   ± (0.2+0.002 * L) mm (L represents line length)

Maximum wire feeding speed    8M/S

Power supply                              220VAC 50HZ 2200W

Gas source                                  0.6-0.8MPa,

maximum gas consumption       5.5m3/H

Appearance                                6500 * 1450 * 1450 (2M take-up)

#The length of the take-up machine can be selected from 2 meters to 12 meters
